Product Introduction

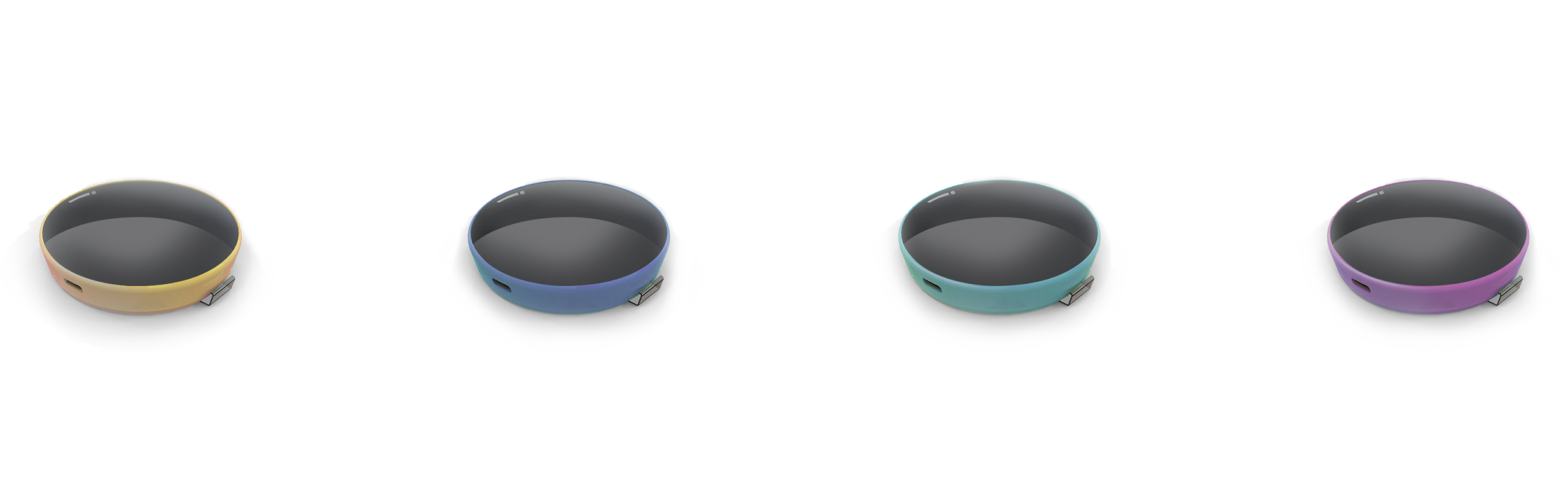

The CH165 pet locator uses CATM communication technology and is a pet locator that can be exported to overseas markets. The overall weight is 26g and the diameter is 48mm. The standby time is 15 days, and there are two positioning methods: GPS and WIFI, with a positioning accuracy of 5-10 meters. There are Amazon cloud servers or various private cloud platforms available.



Product function



Real time positioning	GPS+WIFI dual positioning, achieving precise positioning;
Track query	Do not delete track records and view pet history at any time;
Visual circle	Under safe and unrestricted conditions, if Bluetooth is turned on and the pet exceeds the range, it can automatically send an alarm message to the phone;
Communication	Using CAT. M communication method
real-time monitor	Pedometer function, built-in sensor, real-time monitoring of pet's movement status;
electronic fence	Cross border alarm to effectively prevent pets from getting lost. The app receives alarm messages in a timely manner beyond the scope.
Ultra low power consumption	The maximum usage time of the device is 15 days+
Multiple guardianship	Multiple sharers can be added to view the activity status of pets;



Product specification parameters



processor	nRF52382 ARM Cortex M4 64MHz	Memory	64KB RAM
Flash ROM	512KB Flash ROM	Communication mode	Support for CATM1 & CAT.1
Positioning Standard	GPS+WiFi, positioning accuracy 5-10 meters	SIM	Support for external insertion of Nano sim cards
BT	Bluetooth 5.2	Acceleration	Support accelerometer for motion detection
reset	Reset hole	Output Type	LED three color, buzzer
battery capacity	500mAh, 3.7V rechargeable polymer lithium battery, supporting US certification	Charging	Input DC 5V/500mA, USB interface adapter
