Product Introduction

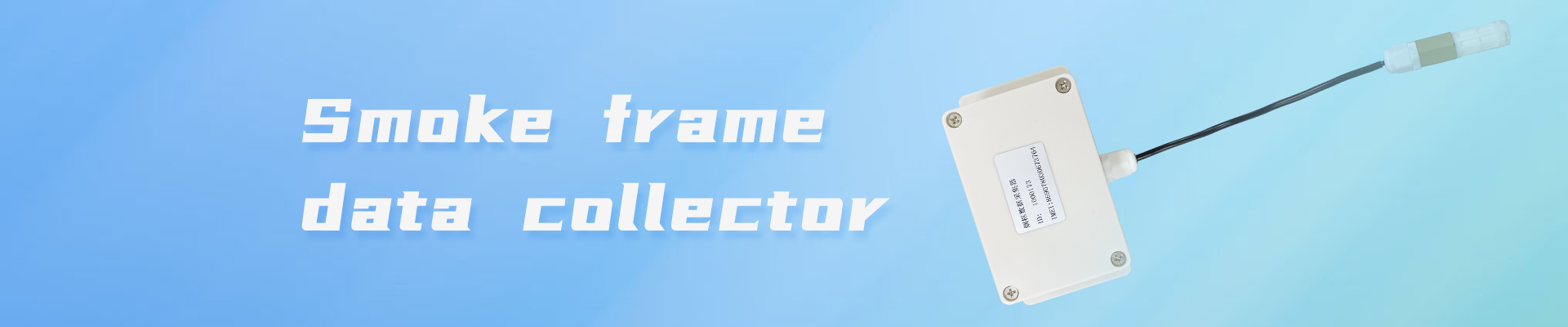

The tobacco frame data collector is a full process control system for tobacco leaves from picking, sun drying to production.
1.Utilize GPS and indoor positioning technology to trace and control the origin of tobacco leaves.
2.External temperature and humidity sensors are used to detect the temperature and humidity of tobacco leaves in real-time. Any abnormalities are reported immediately to ensure the sun drying process and strictly follow the temperature and humidity requirements.
3.Perceive the movement of the tobacco frame and visually manage the classification of tobacco leaves.
|
processor |
ARM Cortex M3 204MHz |
|
Memory |
256KB+16KBx2 |
|
Flash ROM |
4MB |
|
NB IoT supports 3GPP frequency range |
617-960MHz，1710-2200MHz |
|
SIM |
Using 5 * 6mm SMT SIM card |
|
positioning |
GPS+BDS+WiFi, with a positioning accuracy of 5 meters |
|
Temperature and humidity collection |
Temperature and humidity probe (external 80cm line length)
Temperature testing range: -40-+120 Precision: 0.2 ℃
Humidity testing range: 0-100% Temperature: ± 2% |
|
battery |
Collect once an hour and report once a day. If the temperature and humidity exceed the threshold, an automatic alarm will be triggered. The battery size is 12500maH |
|
battery |
Collect once every 2 hours and report once a day. If the temperature and humidity exceed the threshold, an automatic alarm will be triggered. The battery size is 6200maH |
|
cloud platform |
Support MQTT transmission protocol, connect to customer specified platforms (same party) |
|
Installation method |
Back magnetic adsorption type |
| operation temperature |
-20℃～ 65℃ |
